取扱説明書
P0418CS・P0418GCS共通

カタログ
L38PCS代替-P0418CS.pdf
L38PGCS代替-P0418GCS.pdf
PV0420C.pdf

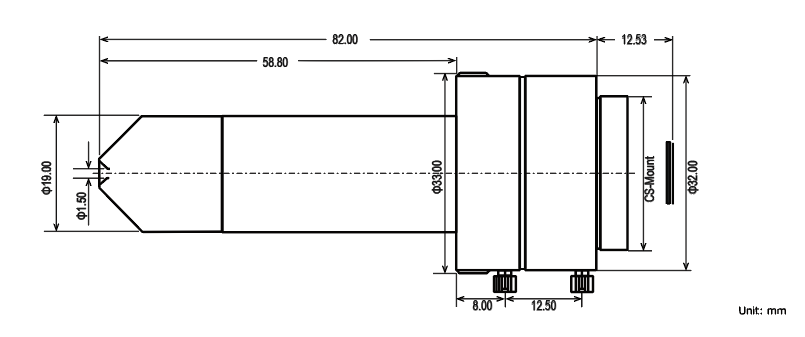

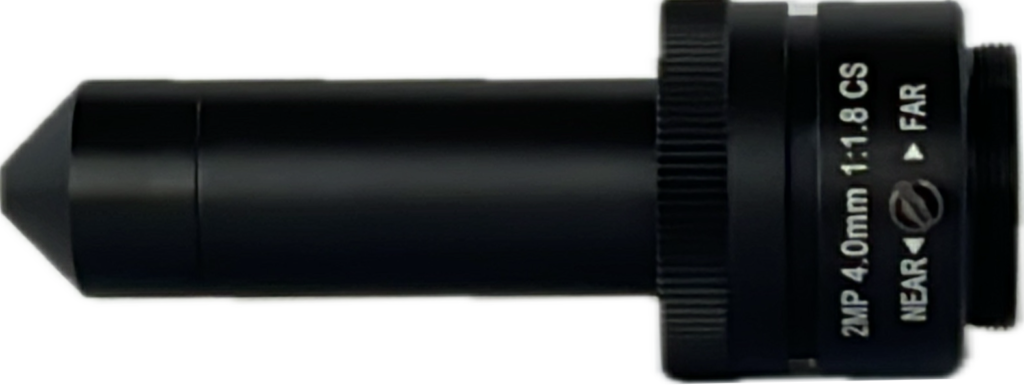

P0418CS(CSマウント)

　

Model	P0418CS
Image Size	1/3inch
Focal length	4 mm
F No.	F1.8
M.O.D (m)	0.15m – ∞
Operation	Iris: Manual
	Focus: Manual
Horizontal Angle of View	1/3" Type: 68.9° × 51.1°
Distortion	-2.3%
Mount	CS-Mount
Flange BFL	12.53mm
Dimension	φ33.0 × 82.0 mm
Weight	75.0 g
Working Temperature	−20℃ ～ +60℃

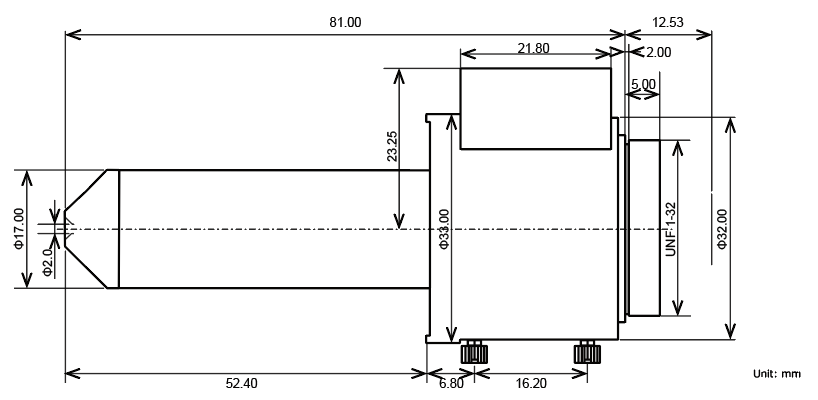

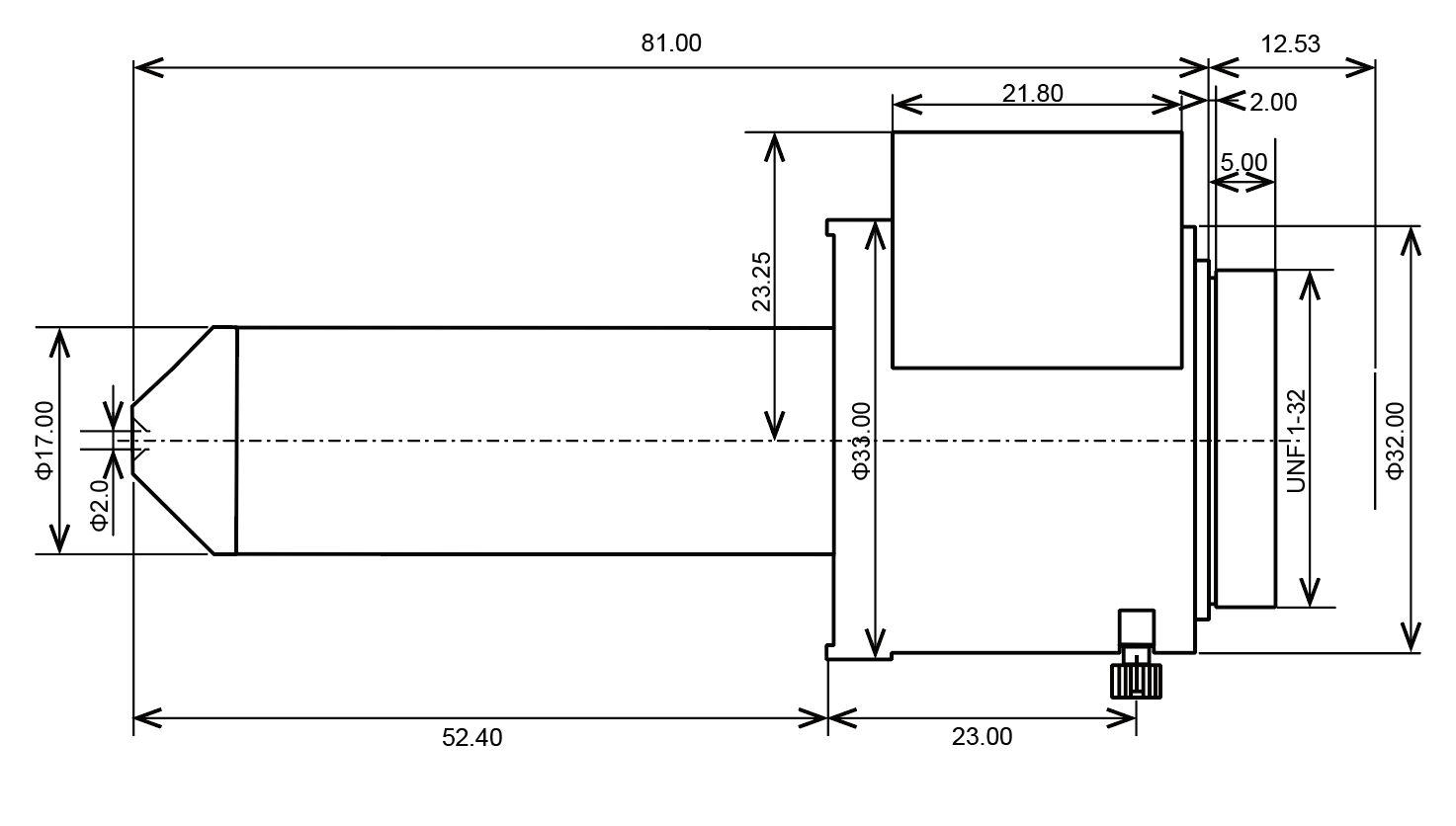

P0418GCS(CSマウント・DCアイリス)

　

Model	P0418GCS
Image Size	1/3inch
Focal length	4 mm
F No.	F1.8
M.O.D (m)	0.15m – ∞
Operation	Iris: Manual
	Focus: Manual
Horizontal Angle of View	1/3" Type: 68.9° × 51.1°
Distortion	-2.3%
Mount	CS-Mount
Flange BFL	12.53mm
Dimension	φ33.0 × 81.0 mm
Weight	93.5 g
Working Temperature	−20℃ ～ +60℃

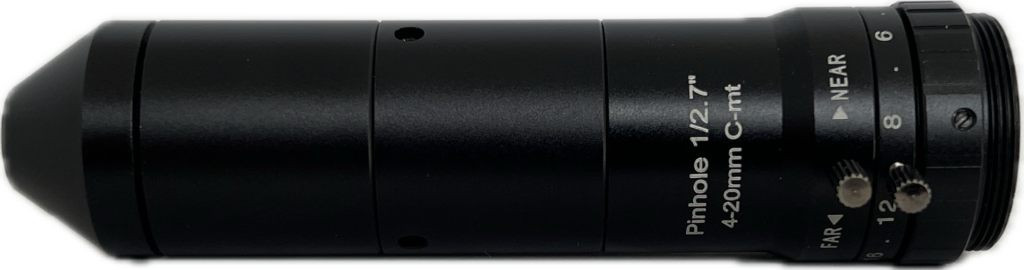

PV0420C(Cマウント・バリフォーカル)

Model	PV0420C
Image Size	1/2.7inch
Focal length	4 mm
F No.	F2.4
M.O.D (m)	0.4m – ∞
Operation	Zoom: Manual
	Focus: Manual
Horizontal Angle of View	1/3" Type wide: 64.5° × 48.5°
	1/3" Type tele: 13.5° × 10.0°
Distortion	-2.3%
Mount	C-Mount
Flange BFL	17.526mm
Dimension	φ28.0 × 103.5 mm
Weight	95.0 g
Working Temperature	−20℃ ～ +60℃
